  1. Data
  2. Create new datasource

Connecting to MySQL database

A step-by-step guide to establish a new connection with MySQL database

PreviousConnecting to Oracle databaseNextConnecting to MS SQL database

Last updated 4 months ago

Was this helpful?

Once you select MySQL from Data โ†’ Connect, you are presented with a form to specify your connection parameters.

  1. Hostname: The network location (DNS or IP address) of your MySQL server. Without a correct hostname, Tellius cannot establish a connection.

  2. Port: Databases listen on specific ports. Specify the port number through which MySQL communicates (typically, it's 3306). Providing the correct port ensures your requests reach the right service.

  3. Database: MySQL servers can host multiple databases. The specific MySQL database (schema) you want to connect to (e.g., QA1). Specifying the exact one ensures you query the intended dataset.

  4. User: Provide the username with appropriate permissions (atleast read-access) to read data.

  5. Password: Provide the corresponding password for the User provided.

  6. Datasource Name: A user-friendly name for this connection in Tellius.

  7. Save and Browse Host: Saves the connection details and attempts to browse the host for available schemas and tables. This initiates the handshake with the MySQL server.

If your database is behind a firewall, we display a Tellius IP address in this page that you may need to whitelist.

Using validated datasource connection details

If youโ€™ve previously validated and saved a MySQL connection, you can reuse its details:

  1. Use validated datasource connection details: When enabled, it reveals a dropdown to choose from existing, previously configured MySQL connections.

  2. Select datasource: Lists all pre-validated MySQL connections. Select the one you want to reuse and all the fields will be filled automatically as configured.

  3. Browse Host: Similar to โ€œSave and Browse Hostโ€, but now it just navigates forward using the chosen existing connectionโ€™s parameters.

Loading tables

After establishing a connection, you will see options to load data from MySQL tables.

  1. Select a table: Displays all available tables under the chosen MySQL schema. Pick the tables you need for analysis. If there are many tables, you can narrow down your selection.

  2. Search for table: Filters the displayed tables based on your search term.

  3. Import: Imports the selected table(s) into Tellius.

Using Custom SQL

If you prefer more granular control or want to write your own SQL queries to load precisely the data you need, switch to "Custom SQL" tab.

  1. Table filter: Helps locate a particular table by name before writing your SQL.

  2. Select a table: Choose a table name to use in your custom query.

  3. Query: A field for your custom SQL statement (e.g., SELECT * FROM SYS.WRI$_DBU_CPU_USAGE).

  4. Preview: Executes the SQL query and displays a few sample rows of the data youโ€™re about to import in the โ€œDataset Previewโ€ area. Allows you to validate that the query returns the correct data before fully importing it. This helps catch syntax errors or incorrect filters early.

  5. Import: Once satisfied with the preview, click Import to load the data returned by the SQL query into Tellius.

Advanced Settings

Once you import, youโ€™ll have the option to refine how the dataset is handled:

  1. Dataset name: Assign a valid name to your new dataset (e.g., XYZ_THRESHOLD). Names should follow the allowed naming conventions (letters, numbers, underscores, no leading underscores/numbers, no special chars/spaces).

  2. Connection Mode When the Live checkbox is selected, the queries will be fetched from the database each time, and the data will not be copied to Tellius. Live mode ensures the most up-to-date data at the cost of potential query latency.

When Live mode is enabled, then only Create Business View option will be displayed.

  1. Copy to system: If enabled, copies the imported data onto Telliusโ€™s internal storage for faster performance. Reduces dependency on the source databaseโ€™s speed and network latency. Good for frequently queried datasets.

  2. Cache dataset in memory: If enabled, keeps a cached copy of the dataset in memory (RAM) for even faster query responses. Memory caching dramatically reduces query time, beneficial for dashboards and frequently accessed data.

When only one table is imported, the following options will also be displayed:

  • Partition column: The column used as a basis for partitioning.

  • Number of partitions: How many segments to break the data into. (e.g., 5 partitions)

  • Lower bound/Upper bound: Approximate value range in the partition column to evenly distribute data.

  1. Create Business View: If enabled, after loading data, you will be guided into the Business View creation stage.

Click on Load to finalize the process. After clicking Load, your dataset appears under Data โ†’ Dataset, ready for exploration, preparation, or business view configuration. Else, click on Cancel to discard the current importing process without creating the dataset.

After the dataset is created, you can navigate to "Dataset", where you can review and further refine your newly created dataset. Apply transformations, joins, or filters in the Prepare module.

Editing the SQL Load

After you have created and saved a dataset, there may be situations where you need to modify the underlying SQL query or adjust how the data is partitioned. For example, you might need to update the SQL query to include additional columns, apply a new filter, join to another table, or adjust partitioning parameters.

  1. After loading all the datasets, click on the three-dot menu of the required MySQL dataset under Data โ†’ Datasets, and select Edit SQL load from the menu. The following window will be displayed.

  1. Inside the dialog, you will see an interface with two toggles at the top: Query and DBTable.

  2. Choose Query if you want to enter or modify a custom SQL query directly. If your data retrieval logic involves multiple joins, in-line calculations, or advanced filters that are easier to express in SQL, the Query option is more appropriate. The Query field is where you will paste or write your updated SQL code.

  3. You would choose DBTable if you simply want to select one (or more) tables directly from your database without writing or maintaining a custom SQL query. This approach is often easier and more straightforward when you donโ€™t need complex joins, filters, or transformationsโ€”Tellius will handle the basic data retrieval automatically.

  4. Update the SQL text in the Query section as needed. For example, you might add a filter WHERE clause, join another table, or select additional columns.

  5. After making changes, click Run Validation to ensure that the updated SQL is syntactically correct and returns data.

  6. Below the Query section, youโ€™ll find the Partitioning (optional) toggle. Partitioning divides the dataset into smaller chunks based on a chosen numeric column. This can vastly improve performance and reduce load times on large datasets.

Partitioning: If enabled, it splits a large dataset into smaller logical chunks (partitions). Improves performance on large tables, enabling parallel processing and faster load times. For more details, check out dedicated page on Partitioning.

Toggle the Partitioning switch to turn it on. For more details on Partitioning and its fields, please check out page.

๐Ÿ”ข
๐Ÿชน
this
this

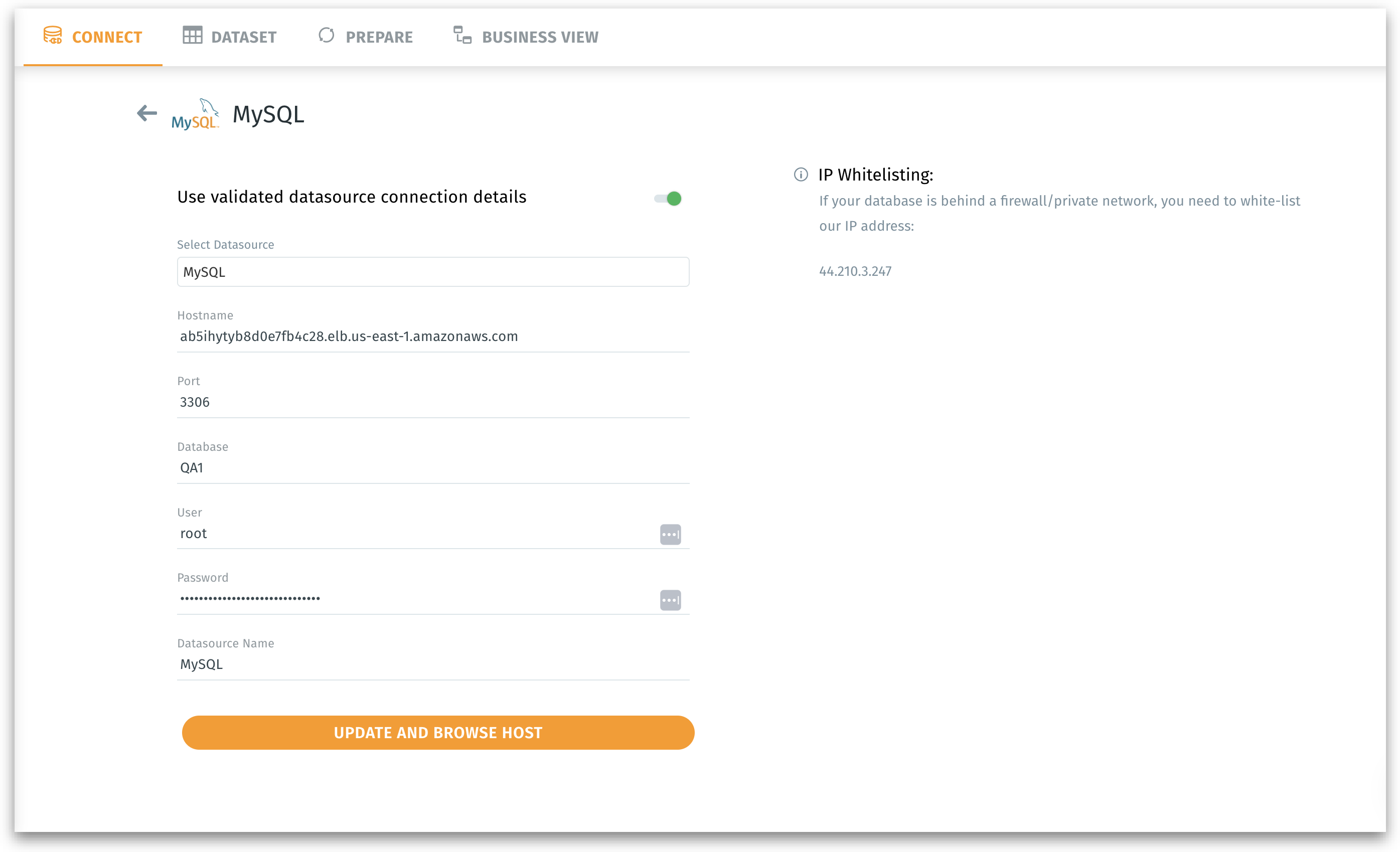

Connecting to MySQL

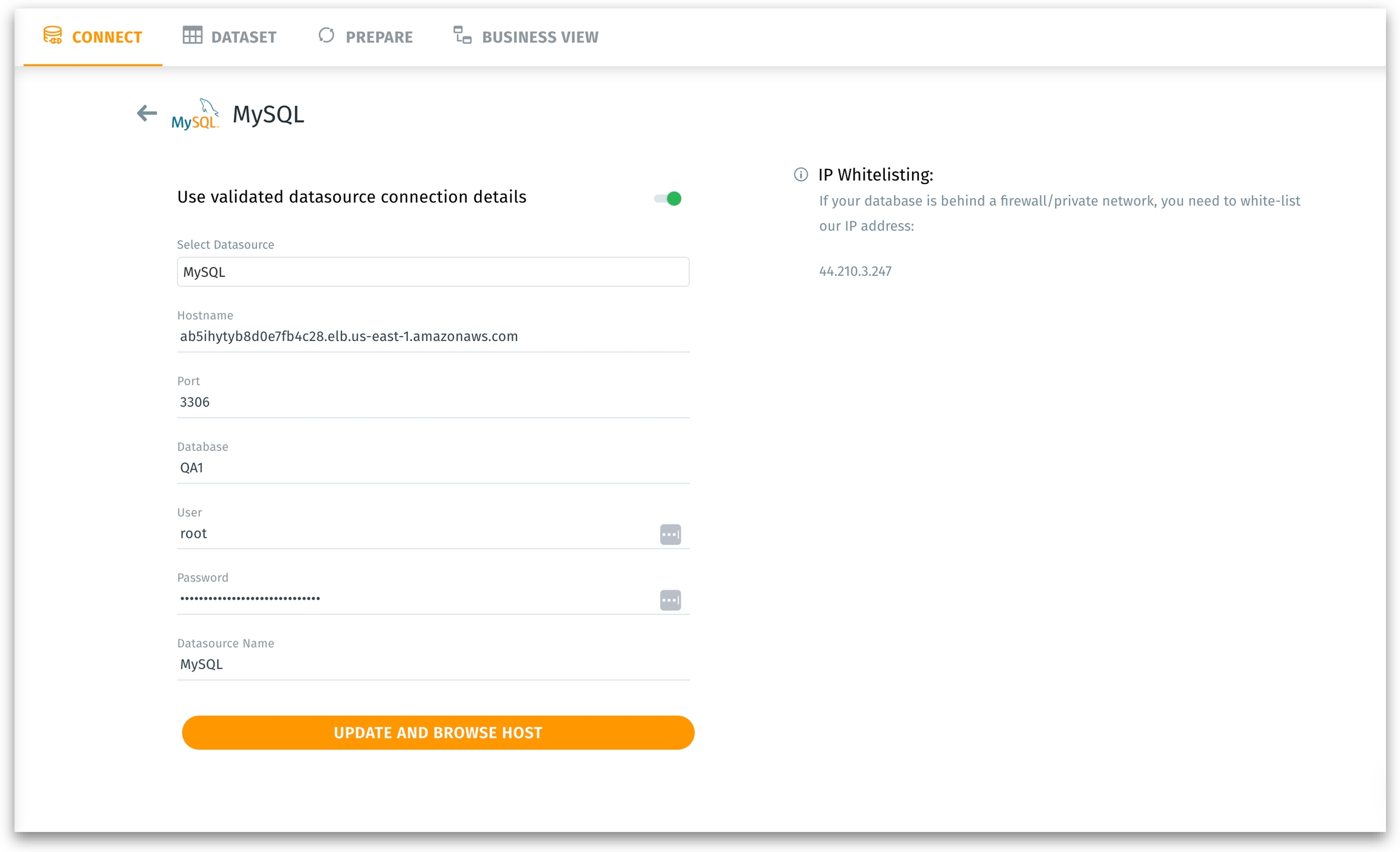

Using already established connections
Loading tables

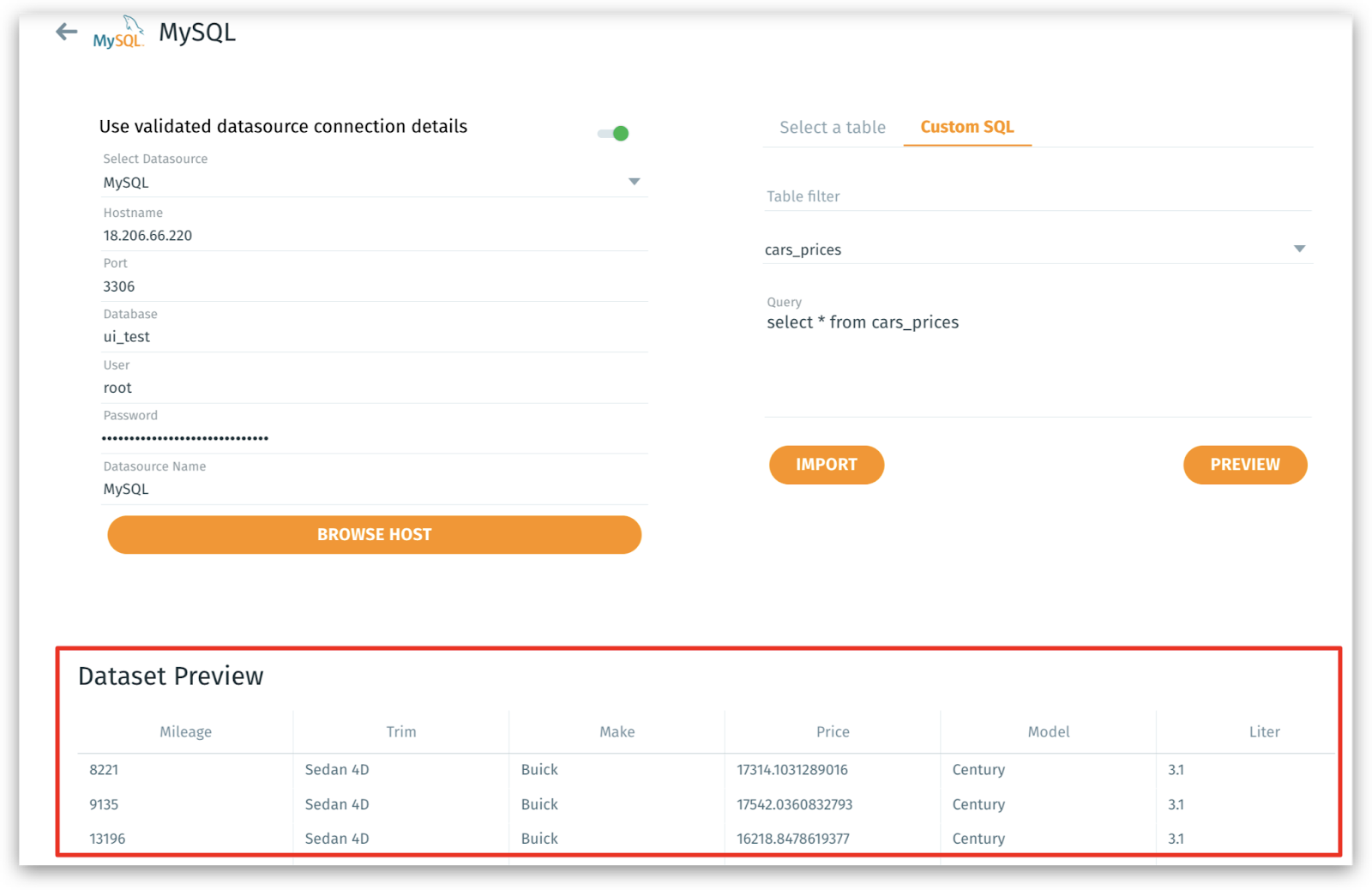

Custom SQL window

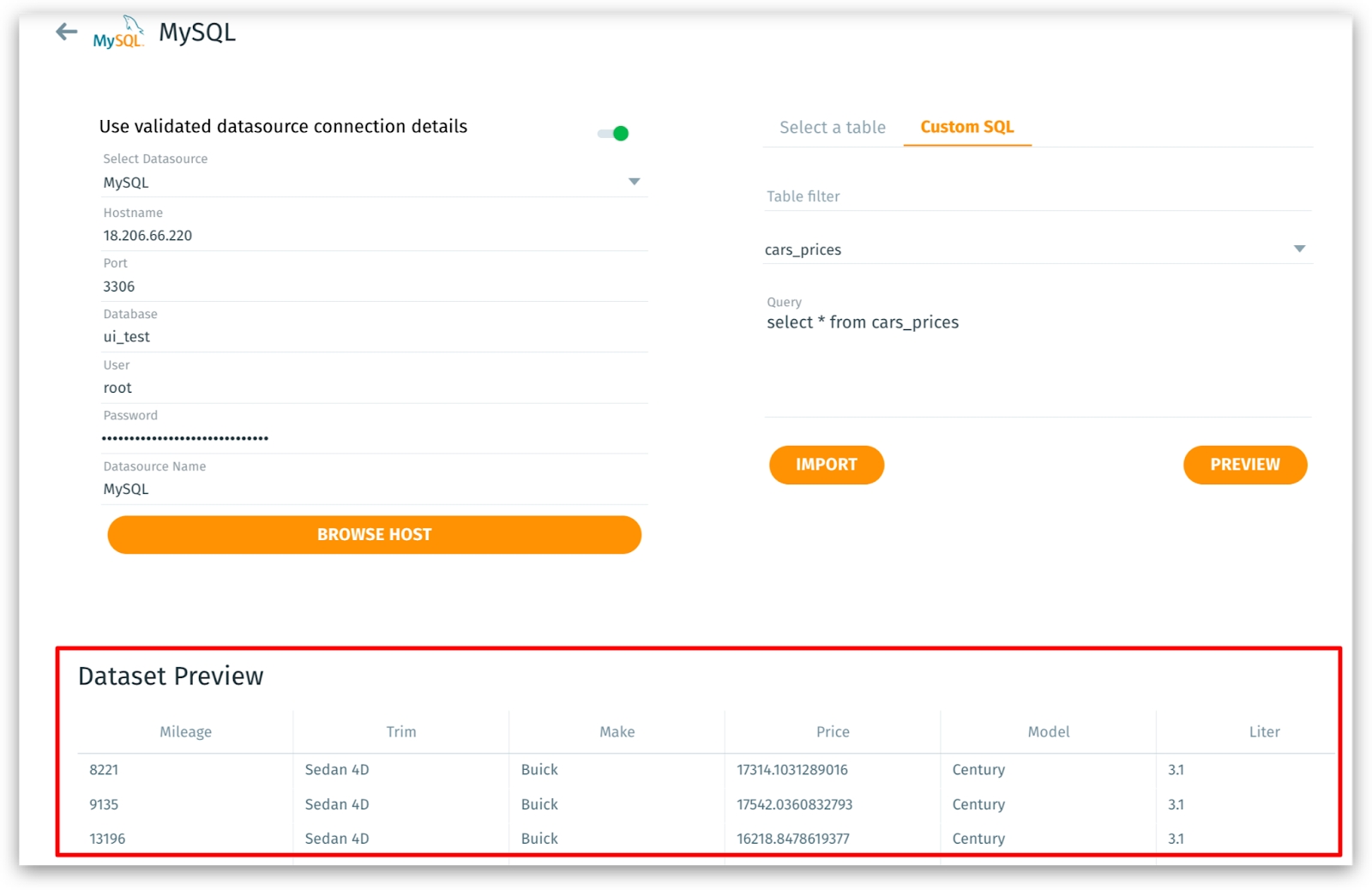

Dataset preview
Advanced Settings
For non-live datasets

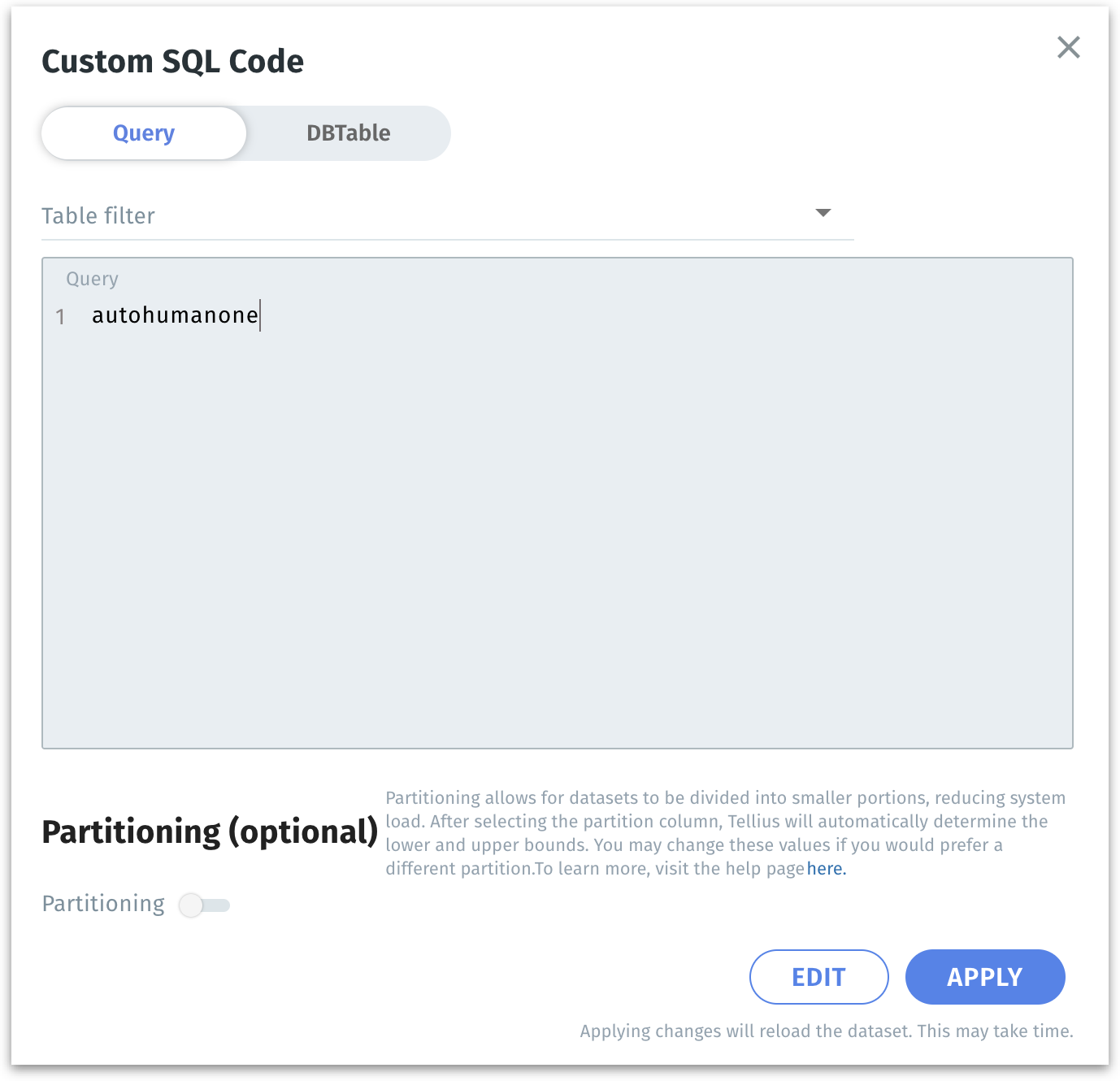

Custom SQL Load
